Ultra high power sporting scope, designed for precision target competition. Optical design engineered to give accurate range-finding capability to within 1.5yards at 50yards range. 9m Parallax to infinity.
Specifications
Magnification Range: 10-50x
Field of View @ 100y: 9.6 – 2.2ft
Eye Relief: 78mm / 3.1in
Minimum Parallax Distance: 9M
Total Elevation Adjustment Range: 30.0MOA
Adjustment Value Per Click: 1/8MOA
Adjustment Per Turn: 12.5MOA
Reticle Choice 1: Mil Dot. Standard 10x. SFP Install. Order Code T501.
Reticle Choice 2: MOA125 SFP Install. Order Code T502. (PDF Diagram here)
Total Length: 440mm / 17.32in
Weight: 995g / 35.1oz
Tube Diameter: 30mm / 1.18in
Construction: 1 Piece Tube/Saddle/Objective
Objective Lens Diameter: 60mm / 2.36in
Outer Objective Diameter: 66mm / 2.60in
Outer Ocular Diameter: 44mm / 1.73in
Additional Sunshades: 2 Supplied
Flip Up Lens Covers: Yes, Supplied

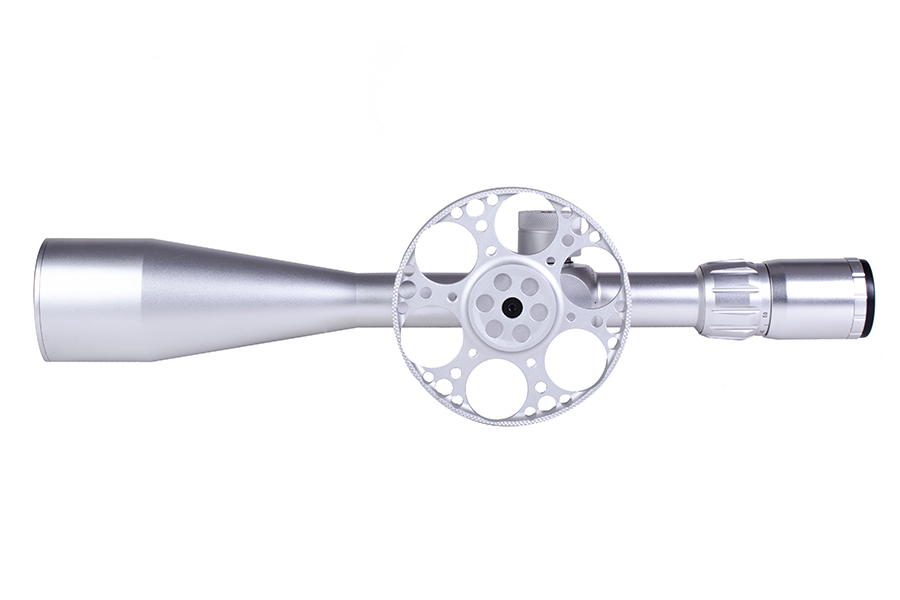

125mm Harris Designed Side Wheel
Rangesports Vinyl Labels Set
Objective end. Contains the 60mm objective lens assembly and objective lens hood. Both the sunshade and objective protector thread into the objective hood
Side parallax adjustment turret. Sometimes referred to as ’side focus’ or ’SF’. This turret is used to dial out parallax, it adjusts back and forth
Elevation and Windage turrets. These are used to adjust the position of the reticle and ’zero in’
Saddle section. This houses the elevation, windage and side parallax turrets. To the front and rear of the saddle section is the 30mm main tube
Magnification ring. This rotates to adjust the magnification setting between 10 and 50
Eyepiece section. This houses the second focal plane reticle
Ocular end. Contains the ocular lens assembly. This is threaded for adjustment, sometimes referred to diopter correction or ‘European style fast focus eyepiece’
- Equipment Overview available for download here
- Nitrogen Purged.
- Waterproof Tested.
- Recoil Tested up to and including .338LM. (And we say .338LM as in our experience these tend to do more damage than the .50BMG)
- Hand Tested and Quality Control passed in the UK.
- Global Warranty.
