Competition crossover scope with side focus. 3-Gun, HFT, Gallery Rifle.
Backed by a no charge, no time limit warranty and service commitment.
Specifications
Endura S10i+ 1-10x24i Side Focus Online Manual – PDF
Magnification Range: 1-10x
Field of View @ 100m: 37.2M – 3.8M (122FT – 12FT)
Eye Relief: 85mm
Parallax Distance: 7M > Infinity
Total Elevation Adjustment Range: 30.0 MRAD
Adjustment Value Per Click: 0.1 MRAD
Adjustment Per Turn: 10.0 MRAD

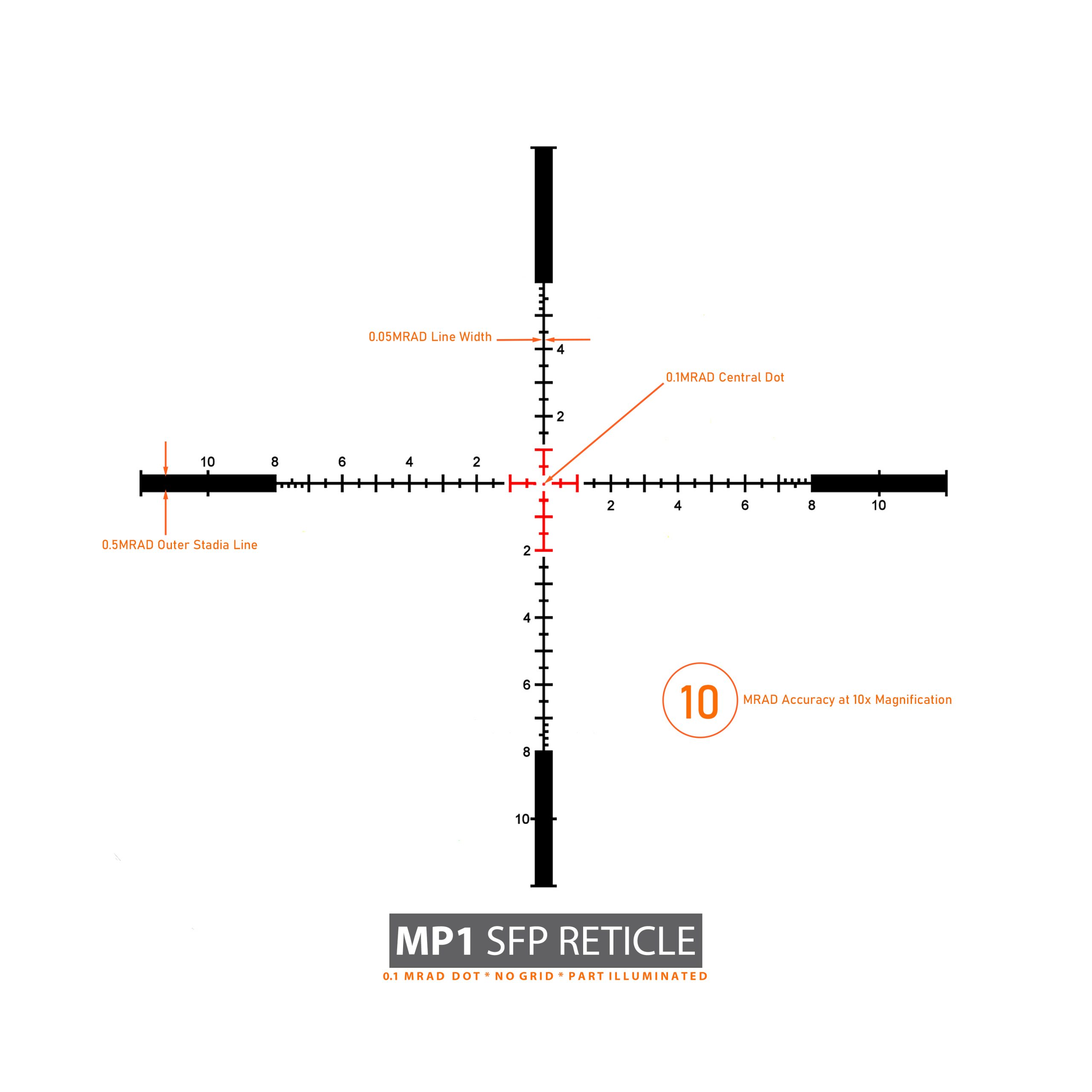

Reticle Choice 1: MP1 SFP Reticle with 0.1 MRAD Dot
Total Length: 282mm
Weight: 711g
Tube Diameter: 30mm
Construction: 1 Piece Tube/Saddle/Objective
Objective Lens Diameter: 24mm
Outer Objective Diameter: 30mm
Outer Ocular Diameter: 45mm
Supplied with flip up lens covers, throw lever for magnification ring and two sunshades
Objective end. Contains the objective lens assembly and objective lens hood. Sunshade installs here.
Elevation and Windage turrets. These are used to adjust the position of the reticle and ’zero in’.
Illuminated Reticle Control and Battery Compartment.
Saddle section. This houses the elevation and windage turrets. To the front and rear of the saddle section is the 30mm main tube
Side Focus Turret.
Magnification ring. This rotates to adjust the magnification setting
Eyepiece section
Ocular end. Contains the ocular lens assembly. This is threaded for adjustment, sometimes referred to diopter correction or ‘European style fast focus eyepiece’.
- Endura S10i+ 1-10x24i Online Manual & Reticle Details (PDF)
- Nitrogen Purged.
- Waterproof Tested.
- Recoil tested up to and including .338LM, .50BMG. Spring-Piston safe with correct mounting, good quality mount rings and correct torque values adhered to.
- Hand Tested and Quality Control passed in the UK.
- Warranty: No Charge, No Time Limit.
