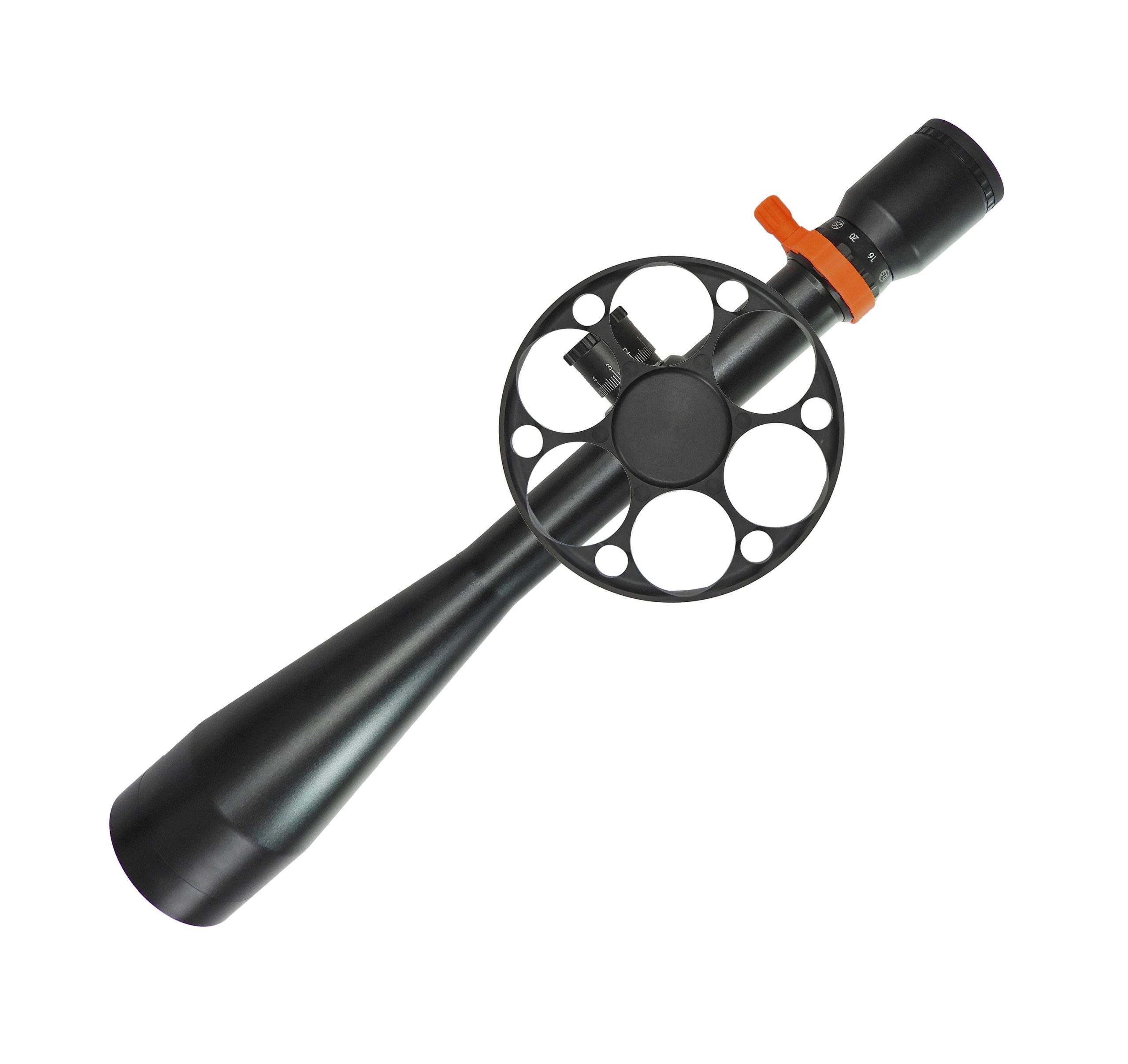

X50 10-50×60 Riflescope

Building on the success of T50 during the last decade, X50 is a brand new ultra-high power competition riflescope.

Available in Long Range or Field Target parallax configuration.

Built in Japan.

Optional Harris Engineering 130mm SideWheel is made in England.

Specifications

Equipment Overview available for download here

Magnification Range:  10-50x

Field of View @ 100M:  3.0 – 0.71M

Eye Relief:  115 – 97mm

Minimum Parallax Distance:  9M (FT) or 10M (LR)

Total Elevation Adjustment Range: 50.0MOA

Adjustment Value Per Click:  1/8MOA

Adjustment Per Turn:  10.0MOA

Reticle:  MOA200 SFP Install. (PDF Diagram here)

Total Length:   429mm

Weight:   850g

Tube Diameter:   30mm

Construction:   1 Piece Tube/Saddle

Objective Lens Diameter:   60mm

Outer Objective Diameter:   69mm

Outer Ocular Diameter:   42.5mm

Additional Sunshade:   1 Supplied

Flip Up Lens Covers: Yes, Supplied

Optional 130mm Harris Engineering SideWheel

Optional Rangesports Vinyl Labels Set

Order Code X503FT = Field Target (9m>300m parallax)

Order Code X504LR = Long Range (10m>infinity parallax)

Order Code X503FT-H = Field Target with Harris Engineering 130mm SideWheel

Objective end. Contains the 60mm objective lens assembly and objective lens hood. Both the sunshade and objective protector thread into the objective hood
Side parallax adjustment turret. Sometimes referred to as ’side focus’ or ’SF’. This turret is used to dial out parallax, it adjusts back and forth
Elevation and Windage turrets. These are used to adjust the position of the reticle and ’zero in’
Saddle section. This houses the elevation, windage and side parallax turrets. To the front and rear of the saddle section is the 30mm main tube
Magnification ring. This rotates to adjust the magnification setting between 10 and 50
Eyepiece section. This houses the second focal plane reticle
Ocular end. Contains the ocular lens assembly. This is threaded for adjustment, sometimes referred to diopter correction or ‘European style fast focus eyepiece’
  • Nitrogen Purged.
  • Waterproof Tested.
  • Recoil Tested up to and including .338LM. (And we say .338LM as in our experience these tend to do more damage than the .50BMG)
  • Hand Tested and Quality Control passed in the UK.
  • Global Warranty.
